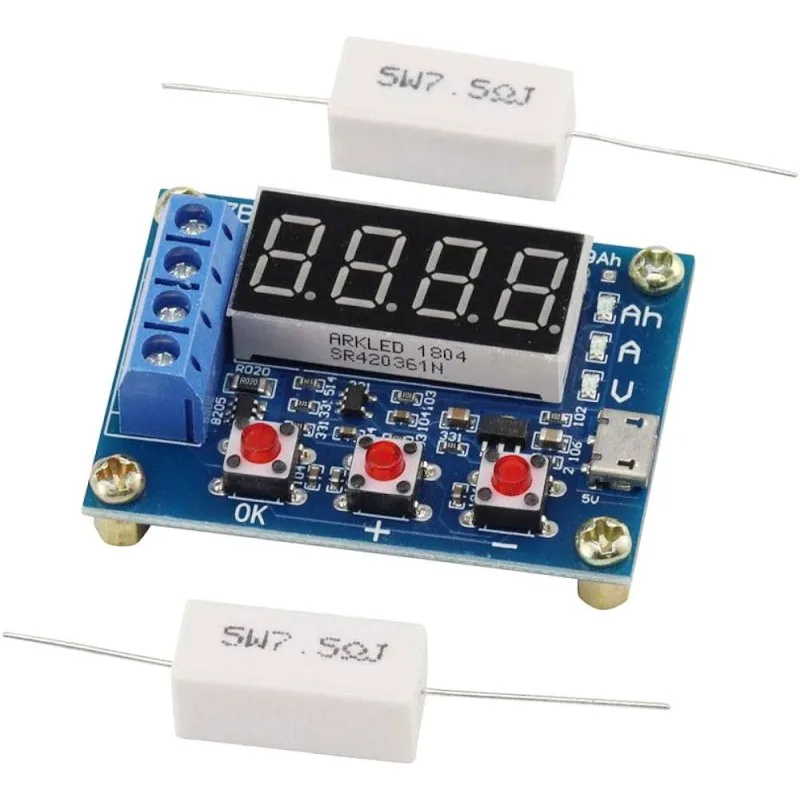

Battery Capacity Tester with External Load Discharge

Specifications

• Power supply voltage: DC 4.5 – 6 V (micro USB interface)
• Working current: no more than 70 mA
• Discharge voltage: 1.00 V-15.00 V, resolution 0.01 V
• Termination voltage range: 0.5 – 11.0 V
• Support through current: no more than 3.000 A, resolution 0.001 A
• Voltage measurement error: less than 1%+0.02 V
• Current measurement error: less than 1.2%+-0.002 A
• Battery capacity range: 9999 A
• Circuit board size: 50 mm x 37 mm
